Analytic Scoring

Overview

An Analytic Score is a representation of how well automated tests are running for an Organization, Building, System or piece of Equipment. High scores (up to 100%) indicate that the underlying Systems and Equipment are performing within expected ranges. A low score will indicate that there are analytics that produce many cautionary and potentially critical results.

While analytics do not run based on Organization- or Building-specific data, the analytic results of the underlying Systems and Equipment will be aggregated to produce Analytic Scores for Organizations and Buildings.

Use Cases

Building stakeholders will be able to view Analytic Scores for the organizations they have access to so that they can assess the health of their Systems and Equipment. Scores that have lower values should be looked at more closely to identify specific Systems and Equipment that may need service or need to have their analytic limits adjusted by a service technician.

User Access

Any user that has access to an Organization and/or the underlying Building will be able to view Analytic Scores. Scores will only be available for Buildings that have an active offering which includes analytics such as Intelligent Services, Silver, Gold or Platinum.

Considerations and Limitations

Only users that have an interest in knowing the health of their systems and buildings need to pay attention to Analytic Scores. Analytic Scores do not reflect the current, up-to-the-minute operation of Equipment, but rather the performance over days, weeks or months.

How It Works

In general, each Building, System or piece of Equipment Analytic Summary screen will be able to:

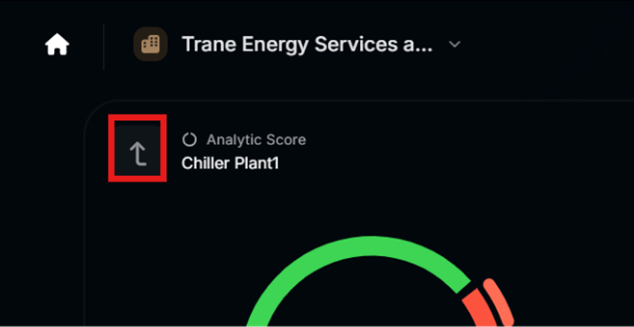

1. Navigate to its parent by selecting the up arrow at the top left of the screen.

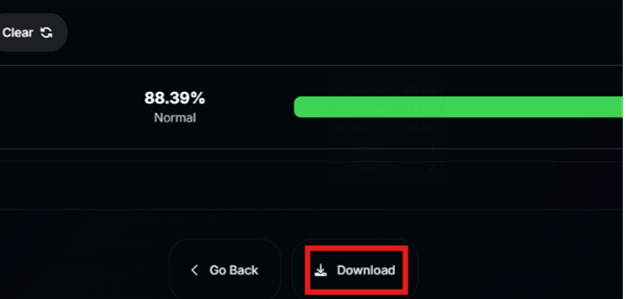

2. Be able to download the Analytic Summary as a PDF via the Download icon at the bottom of the page.

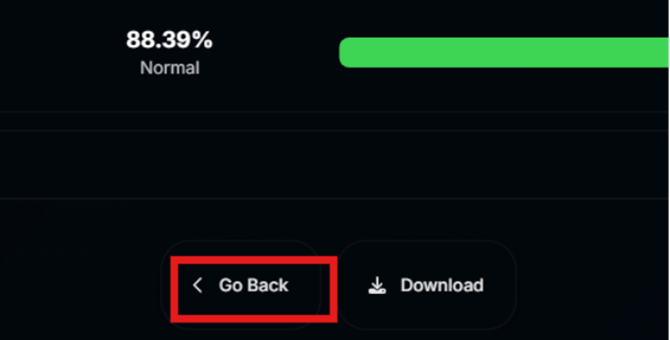

3. Be able to go back to the previous screen using the link at the bottom of the page.

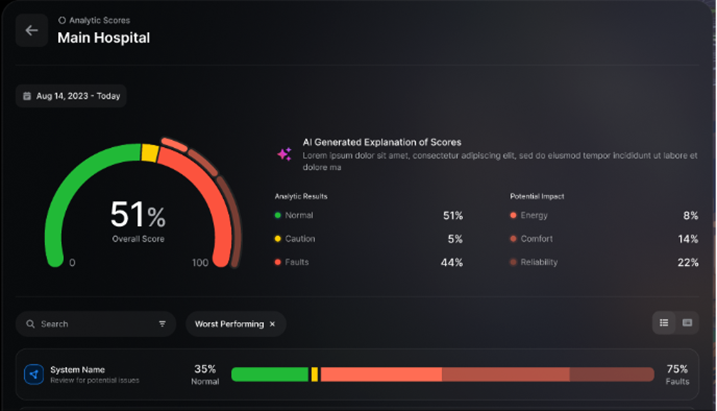

Organization-Level Analytic Summary Screen

A Trane Cloud Organization Dashboard will have an overall score for all the Systems and Equipment aggregated from all the Buildings within that Organization. This score (from 0 to 100%) is the percentage of passing automated tests for all Systems and Equipment for the specified time period. There is a graphical representation of the status of those tests:

1. Passed (called Normal Results)
2. Exceeded a cautionary limit (called Caution Results)
3. Exceeded a critical limit (called Fault Results)

Selecting the Analytic Score widget will present additional details (called an Analytic Summary) for that organization’s Analytic Score, including specifying the potential percent impact of the faults:

1. Energy impact
2. Comfort impact
3. Reliability impact

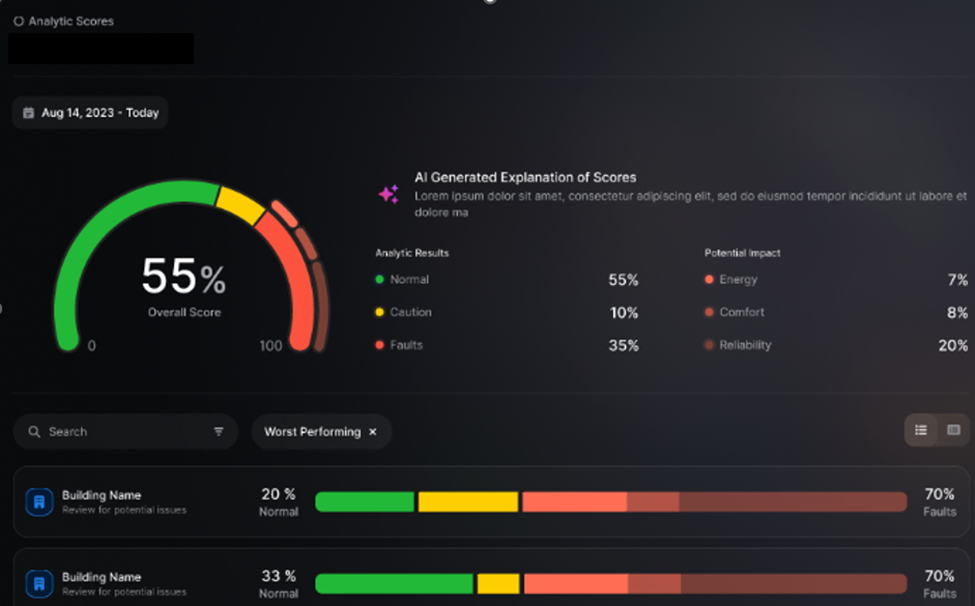

This Analytic Summary will have the Analytic Scores (and details) for each building that is part of the Organization. These Buildings will be sorted by Worst Performing by default.

Building-Level Analytic Summary Screen

Selecting a Building from the list in the organization’s Analytic Summary will navigate to that building’s Analytic Summary. Just like the organization’s Analytic Summary, there will be an overall, aggregated Analytic Score of all the Systems and Equipment analytic outputs, but only from that single Building. There will also be status and impact details for the building.

The Building-level Analytic Summary will also have a list of all the systems that are in that building. Each system will have Analytic Score details aggregated from that System and all the Equipment associated with it.

System-Level Analytic Summary Screen

Selecting a System from the list in the building’s Analytic Summary will navigate to that System’s Analytic Summary. There will be an overall, aggregated Analytic Score for all the analytics in that system and all the Equipment that is part of the system. There will also be status and impact details for the system.

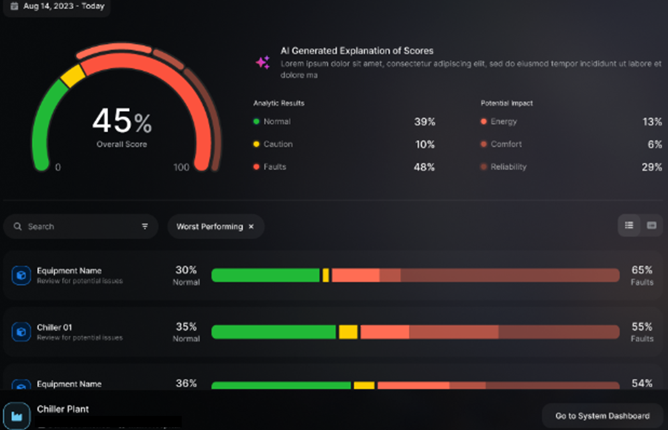

The System-level Analytic Summary will also have a list of all the Equipment that is in that System. Each piece of Equipment will have Analytic Score details for that Equipment.

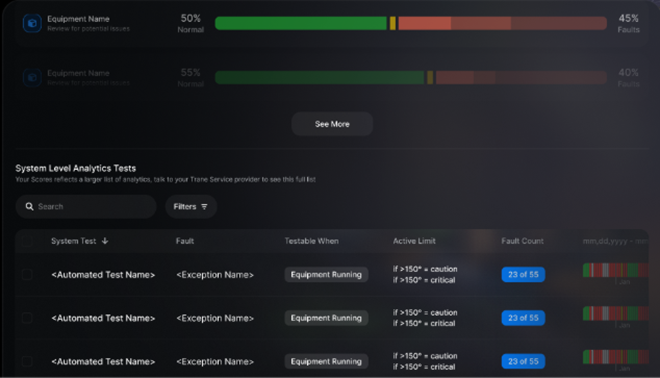

At the bottom of the System-level Analytic Summary are details about each of the System’s analytics.

Equipment-Level Analytic Summary Screen

Selecting Equipment from the list in the system Analytic Summary will navigate to that Equipment’s Analytic Summary. There will be an overall, aggregated Analytic Score for all the analytics for that Equipment. There will also be Status and Impact details for the Equipment.

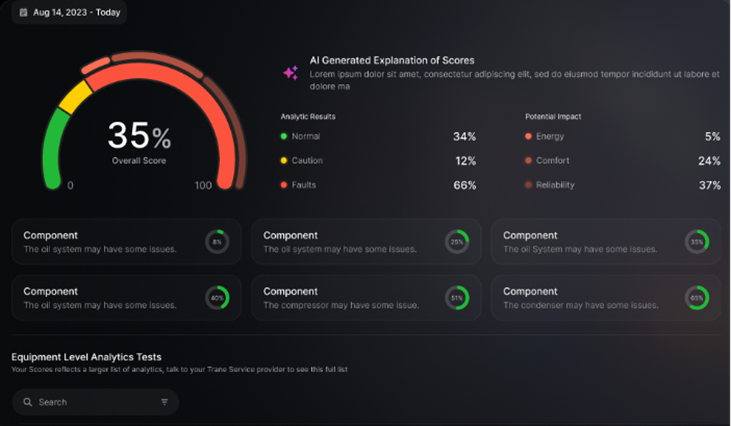

This screen will also have a section for each Analytic Category type. For each category, there will be an indication of the percentage of normal results — based on the total number of valid test results for that category.

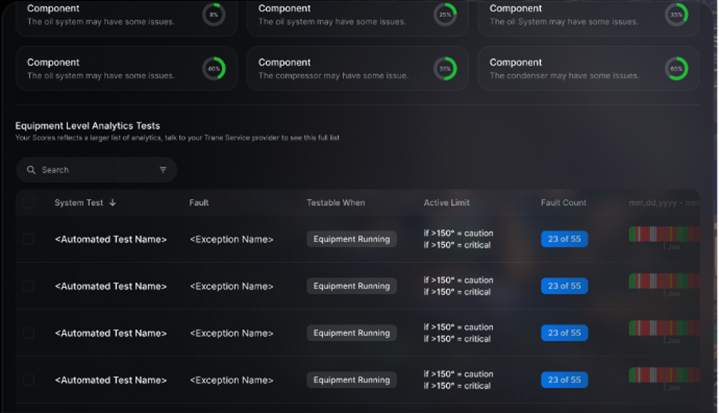

Just like the System-level Analytic Summary screen, there are Equipment-level details for each of the Equipment analytics.

Step by Step Use Case Examples

A user will navigate to the Analytic Score content to evaluate the health of their Buildings and the Systems and pieces of Equipment within those Buildings. Building owners may be interested in only seeing a high-level account of their Building’s health and only view the Analytic Score information from an Organization or Building level to gain confidence that their occupants are comfortable and the Building is running efficiently. Service technicians may be more interested in Analytic Score information at a more granular System or Equipment level to understand what equipment may need service.

Customization

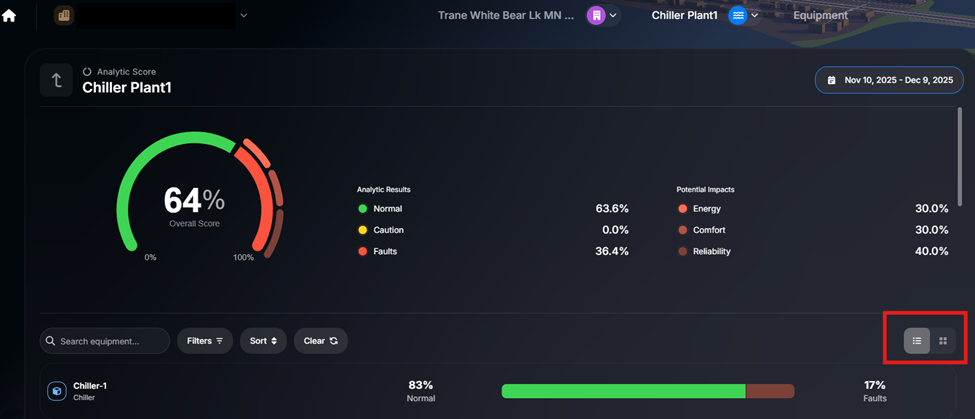

At the Organization, Building and System level, the members of those higher-level components can be viewed either as rows or cards by toggling the switch just above the list of members on the right side.
